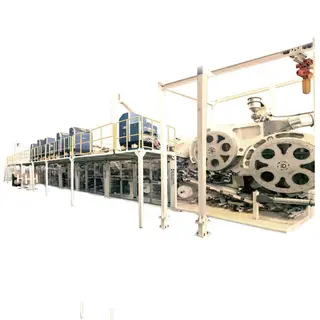

High Speed Baby Diaper Production Line
Key Specifications / Features
Model No.: DNW-NK350I Hits: 145
High speed baby diaper production line manufacturer in China: high speed baby diaper production line, quality guaranteed, for economic diapers production.
Request a quoteTags:
Detail Information
Name:High Speed Baby Diaper Production Line.
Main Technical Parameters
Main Technical Parameters
- Designed speed: 130m/min.
- Practical speed: 300-400pcs/min.
- Installation capacity: 120KW (Including hot melt applicators)(380V 50Hz ).
- Practical capacity: 95 KW (Including hot melt applicators) (380V 50Hz ).
- Breaker Capacity: 400A.
- Electric wire: 3x70mm2+1x25mm2+1x16mm2.
- Machine size: (26x26x3)m (LxWxH).
- Working size: (30x17x4)m (LxWxH).
- Air compressor: 1.3m3/min＞0.6Mpa.
- Total weight: 38T.
- Product specification(mm): LxW, it can as your order. (S: 380x270, M: 450x310, L: 520x330, XL: 540x340)
- Container: 2x40HQ+1x20GP.
- It can produce both economic and high-grade products.
- Raw materials Automatic unwinding system.
- Raw materials Automatic tension control system.
- Raw materials Automatic feeding system.
- Raw materials Automatic web guiding system.
- Raw materials Automatic inspecting for raw material defect.
- Raw materials Automatic inspecting for raw material splicing.
- Raw materials Automatic rejection system.
- Frontal tape and side tape out-set from the main machine to make it convenient to change raw material.
- Fixed amount feeding system for fluff pulp and SAP.
- Stacker connects with the main machine, to realize automatic arranging and bag-feeding function.
- Man-machine interface.
- Hot melt applicator outer-fixed(bridge style).
