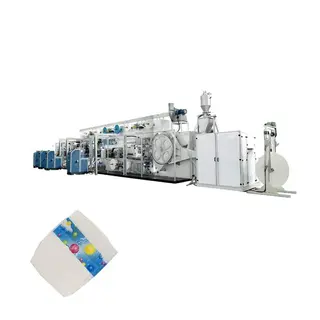

Full Frequency I Shape Baby Diaper Production Line

Name: Full Frequency I Shape Baby Diaper Production Line
SKU: DNW-NK450I
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: DNW-NK450I Hits: 102

Full frequency baby diaper production line supplier in China: full frequency I shape baby diaper production line, automatic production, high performance.

Request a quote

Tags:

Detail Information

Name:I Shape Baby Diaper Production Line.

Technical Parameters

Designed speed: 150M/Min.
Practical speed: 400-500 pcs/min (based on S size).
Installed capacity: 140KW (380V 50HZ).
Practical capacity: 110KW (380V 50HZ)Breaker.
Electric wire: 3x70mm2+1x25mm2+1x16mm2.
Machine size: 26.5x6x3M (LxWxH).
Working Space: 30.5x10x4M (LxWxH).
Machine weight: about 38T.
Product size(mm): LxW(to be adjusted) S: 380x270, M: 450x310, L: 520x330, XL: 540x340.

Main functions and features

The machine can produce regular type, economic type and high grade type baby diapers.
Customer can choose the optional device (as it is shown in picture 1) to produce elastic side tape products.
Complex non woven and PE film as back sheet online laminating function to save the material cost.
Materials of stereo-protection are complex and molding on machine.
Waistband, frontal tape and side tape are cut automatically.
Extension of rubber band can be regulated.
The quantity of SAP and fluff pulp can be adjusted freely according to the customer’s requirements.
Raw materials automatic unwinding system.
Raw materials automatic tension control system.
Raw materials automatic splicing units.
Raw materials automatic rejection units.
Raw materials automatic edge guard system.
Frontal tape and side tape out-set from the main machine to make it convenient to change raw material.
The machine is attached with fully automatic packing machine (Stacker), make packing simpler and save labor force.
Machine equipped with protection door.
Touchable Screen: Machine switch on/off, running speed, time, countting pieces, parameter setting, alarm, error display,error enquiry (functions setting appear on screen are different according to different machine type).
