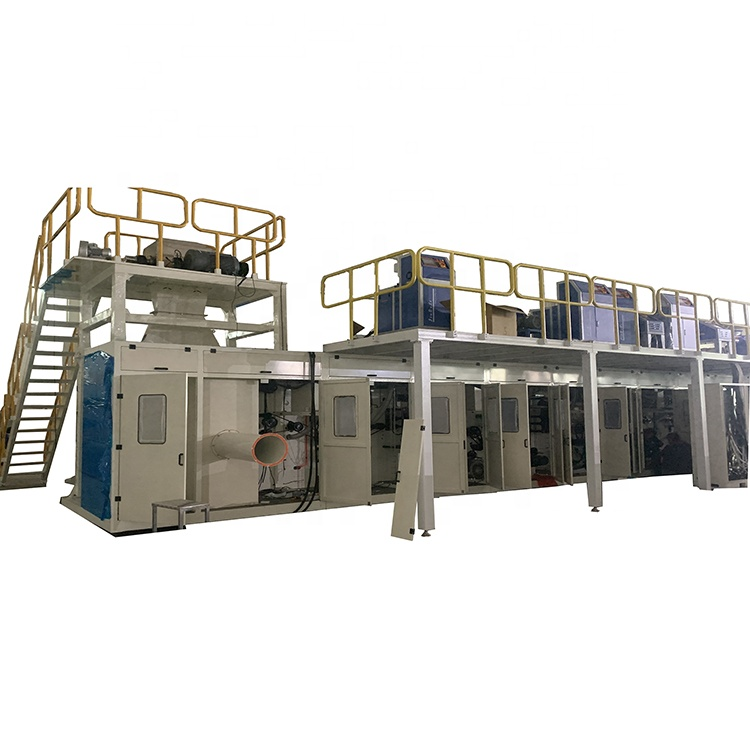

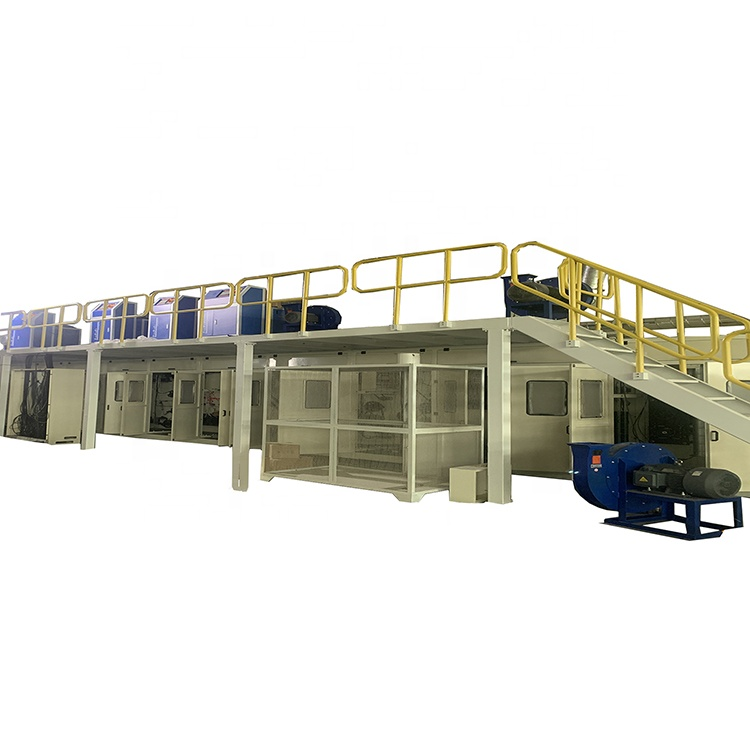

Double Layer Enclosure Leakage Proof Baby Diaper Machine
Key Specifications / Features
Model No.: HM-231011-BDM-17 Hits: 0
Welcome to our Double Layer Enclosure Leakage-Proof Baby Diaper Machine Manufacturing. These machines are designed for a speed of 600 pieces per minute and feature a servo motors driving system with a user-friendly PLC control system operated through a large touch screen interface.
Request a quoteTags
Detail Information
Product Details
Feature
Double Layer Enclosure Leakage Proof Baby Diaper Machine
| Subject | Parameter |
| Overall size(L*W*H) | 24M*4M*3.6M(For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 500-550pcs/min |
| Pass percentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ(3phase,4lines+ground wire) |
| Machine capacity | 280KW approximately |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | 60T approximately |
| Color | Customized |
Feature
- User-friendly touch screen interface for intuitive control and graphical interaction.
- Comprehensive servo technology with selectable speed adjustments and advanced PLC programming.
- Precision toothed crushing mechanism.
- Efficient demolding and formation of cotton core mesh wheels.
- Accurate polymer dosing application.
- Active material unwinding with consistent tension control and automated material switching.
- Material breakage and shortage detection with automatic scrap rejection at the intake.
- On-the-fly phase adjustment without the need for shutdown.
- Column-structured swivel tool rest for enhanced stability.
- Enjoy a 30% discount on finished products.
- Automatic product counting and bagging for streamlined packaging.
